| Product Technical Specifications for Small Air Cool Diesel Engine Models from WSEPO |
| Model |
WSE170F |
WSE173F |
WSE178F/FS |
WSE186F/FS |
WSE186FA |
WSE188F/FS |
WSE192F/FS |
| Type |
Single-cylinder, vertical,4-stroke,air-cooled diesel engine |
| Combustion system |
Direct injection |
| Bore×stroke(mm) |
70×55 |
73×59 |
78×62 |
86×70 |
86×72 |
88×75 |
92×75 |
| Displacement(cc) |
211 |
247 |
296 |
406 |
418 |
456 |
499 |
| Speed(rpm) |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
| Max. output(kw/hp) |
(3.1)4.2 |
(3.5)5.0 |
(4.4)6.0 |
(6.6)9.0 |
(6.8)10 |
(7.8)11.0 |
(8.5)12.0 |
| Cont. output(kw/hp) |
(2.8)3.8 |
(3.2)4.7 |
(4.0)5.4 |
(6.3)8.6 |
(6.5)8.8 |
(7.5)10.2 |
(8.0)11.0 |
| Starting system |
Recoil or Electric(Optional) |
| Power output method |
Crankshaft / Camshaft (The speed of camshaft is 1/2 of the Crankshaft’s) |
| Rotary direction of output axis |
Counter Clockwise(View in the direction of output axis)/ Clockwise for FS Model |
| Fuel/lubrication(L) |
0# in summer,-10# or -20# in winter light diesel fuel/SAE 10W30 |
| Fuel capacity(L) |
2.5 |
2.5 |
3.5 |
5.5 |
| Lubrication capacity(L) |
0.75 |
0.75 |
1.1 |
1.65 |
| Recommended starting system |
12V-18AH |
12V-18AH |
12V-24AH |
12V-35AH |
| Net Weight(kg) |
27 |
33 |
48 |
| Engine Dimensions |
332×376×415 |
383×421×445 |
417×441×494 |
| (L×W×H)mm |

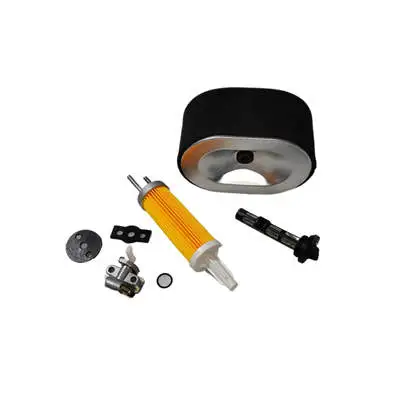

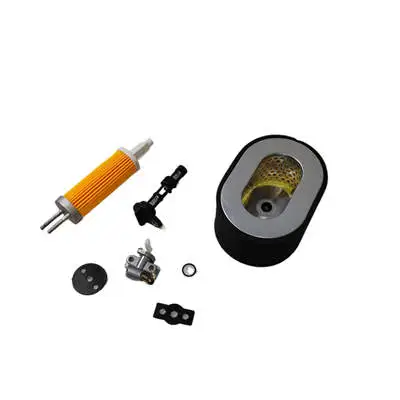

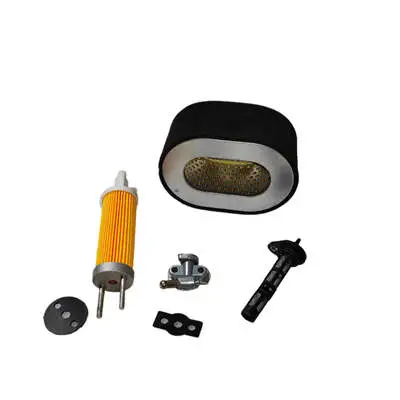

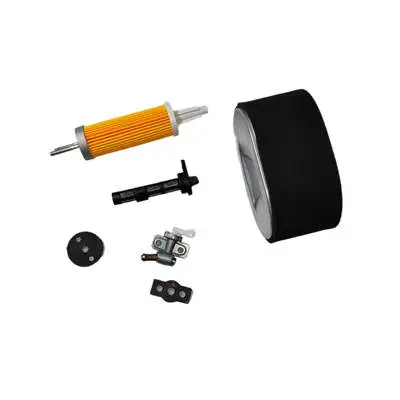

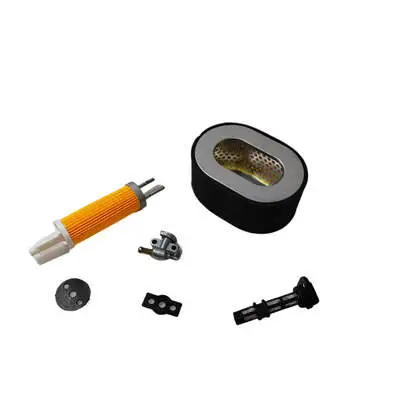

178F 178FA L70 Air Cool Diesel Engine Fuel Filter/Air Filter/ Oil Filter and Petcock Kit
