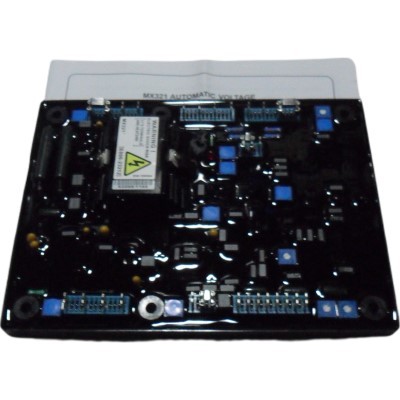

Quality Replacement AVR Model MX321

SKU: WSE1178
Replacement MX321 Automatic Voltage Regulator For Brushless Diesel Generator
0.0 (0 Reviews)
0 Sold
$66.99 $43.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Quality Replacement AVR Model MX321
  • Description
Quality Replacement AVR Model MX321
MX341
Specification&Features

SENSING INPUT

Voltage 190-264V ac max, 2 or 3 phase

Frequency 50-60 Hz nominal

POWER INPUT (PMG)

Voltage 170-220V ac max, 3 phase, 3 wire

Current 3A/phase

Frequency 100-120 Hz nominal

OUTPUT

Voltage max 120V dc

Current continuous 3.7 A (see note 1)

Intermittent 6A for 10 secs.

Resistance 15 ohms minimum

REGULATION

+/- 0.5% RMS with 4% engine governing (see note 2)

THERMAL DRIFT

0.02% per deg. C change in VOLTAGE REGULATOR ambient (note 3)

SOFT START RAMP TIME

0.4 - 4 seconds

TYPICAL SYSTEM RESPONSE

VOLTAGE REGULATOR response 10 ms

Filed current to 90% 80 ms

Machine Volts to 97% 300 ms

EXTERNAL VOLTAGE ADJUSTMENT

+/-10% with 5 k ohm 1 watt trimmer (see note 4)

UNDER FREQUENCY PROTECTION

Set point 95% Hz (see note 5)

Slope 100-300% down to 30 Hz

Max. Dwell 20% volts/S recovery

UNIT POWER DISSIPATION

18 watts maximum

ANALOGUE INPUT

Maximum input +/- 5 Vdc (see note 6)

Sensitivity 1v for 5% Generator Volts (adjustable)

Input resistance 1k ohm

QUADRATURE DROOP INPUT

10 ohms burden

Max. sensitivity: 0.22 A for 5% droop 0PF

Max. input: 0.33 A

CURRENT LIMIT INPUT

10 ohms burden

Sensitivity range: 0.5 – 1A

OVER VOLTAGE DETECTOR INPUT

Set point: 300v. Time delay: 1 Sec (fixed)

CB trip coil volts: 10-30 vdc

CB trip coil resistance: 20-60 ohms

OVER EXCITATION PROTECTION

Set point 75 V dc

Time delay 8-15 seconds (fixed)

ENVIRONMENTAL

Vibration 20-100 Hz 50mm/sec

100Hz – 2kHz 3.3g

Operating temperature -40 to +700C

Relative Humidity 0-700C 95% (see note 7)

Storage temperature -55 to +800C

Other Replacement AVR Models  Also Available:

AS480, AVC63-4, AVC63-4A, EA04C, EA05A, EA05AF, EA08A, EA15A, EA16A, EA350, EA440-T, EP200, GAVR-8A, GAVR-12A, GAVR-20A, GAVR-75A, GB110, GB15A, GB120, GB130, GB160, GB170, M16FA655A, MX321, MX341, MX450, R220, R230, R250, R438, R448, R450, SE350, SR7, STL-F, SX440, SX460, UVR6, VR6, WT-2, WT-3 ETC.
Please do not hesitate to contact us for any help!
